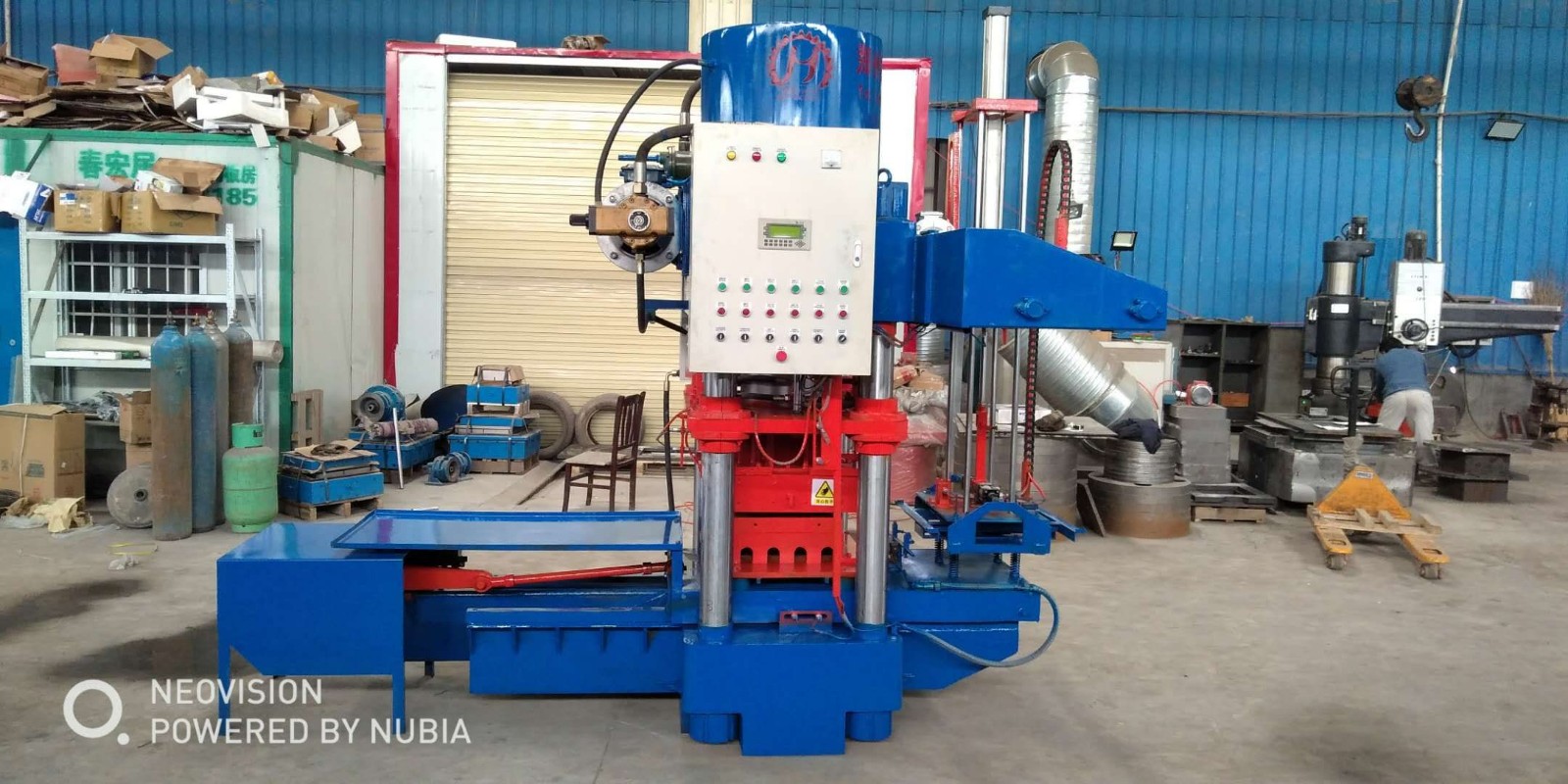

MM500 terrazzo tile making machine with stacker
Terrazzo tile making machine for producing 500*500mm floor tile
Description

MM 500  cement tile machine

The single-mould press MM-500 is specifically designed for the molding of small-size products (up to 500×500 mm and with thickness from 20 to 40 mm in the standard version), but it is also suitable for molding tiles of smaller size.
Provided with automatic doser of the wet mixture with large-diameter dosing cups, the thickness of the tiles can be easily adjusted.

SPECIFICATIONS FOR MM-500   CEMENT  TILE  MACHINE
Model:
MM500
Pressure:
250T (customized pressure is available)
 Power:
7.5 kw
Weight:
5 Tons
Production:
4-6 pcs/min
Dimension:
2900*1450*2550
Max.mold size:
500*500
Hydraulic system:
Taiwan Northman
Electrical system:
Taiwan Delta

Main Features of MM500 Terrazzo Floor Tile Making Machine

 1. For producing single-layer tiles

2.  Changing different molds, it can produce various roof tiles and floor tile with different patterns
3. Easy operation and maintenance

4. Sizes of manufactured tiles: 500*500, 400*400, 300*300, 250*250mm,200*200mm
