MMR-400/600/1200 rotary tile press
The multi-station press MMR-400/600/1200 is specifically designed for both of single-layer and double-layer products (up to 1200×600 mm and with thickness from 20 to 200 mm in the standard version), but it is also suitable for molding tiles of small
Tel: 0086-15531690636
E-mail: sales03@man-mach.com
Description
Instruction

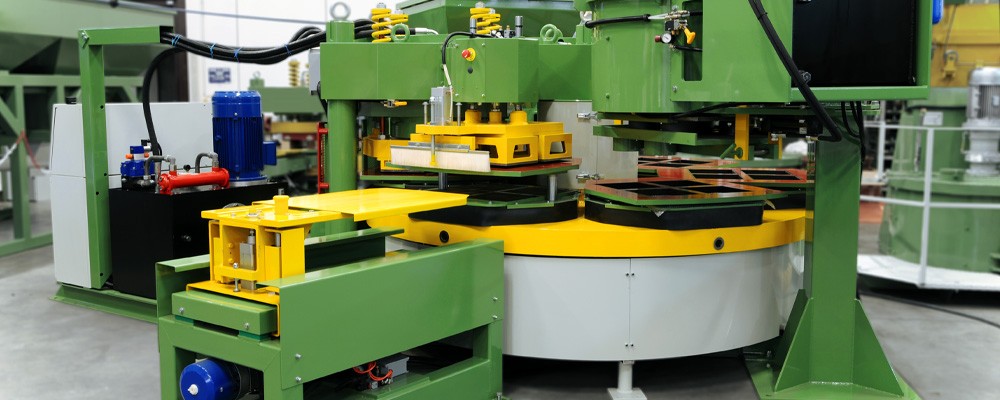

The multi-station press MMR-400/600/1200 is specifically designed for both of single-layer and double-layer products (up to 1200×600 mm and with thickness from 20 to 200 mm in the standard version), but it is also suitable for molding tiles of smaller size. It can be 6 stations or 8 stations.
Provided with automatic doser of the wet mixture with large-diameter dosing cups, the thickness of the tiles can be easily adjusted.
Working Principle
1. Hydraulic pressure

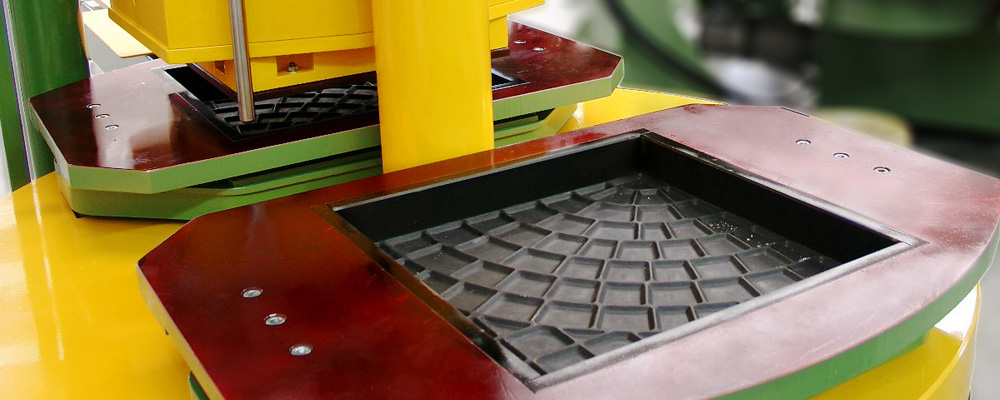

2. Steel mold， 6/8-station for both of single-layer and double-layer tiles
3. Vibration and Vaccum system
4. PLC system
Service
Supply the most current design and technical expertise;
Supply parts sales and training service far beyond the initial sale;
Your profits with quality parts and expert service.
Technical parameter
| Item | MMR400 | MMR600 | MMR1200 |
| Pressure: T | 200 | 350 | 800 |
| Power | 15KW | 30KW | 45KW |
| Max. Mold size: mm | 400X400 | 600X600 | 1200X600 800X800 |
| Dimension: mm | 3100X2100X2600 | 4500X2800x3200 | 6500X3200X3500 |
| Weight: T | 15 | 25 | 35 |
| Production: Pcs/Min | 4-8 | 3-6 | 1-2 |
| Vibrating motors: pcs | 2 | 4 | 4 |
| Hydraulic system | Italian ATOS | Italian ATOS | Italian ATOS |
| Electrical system: | MITSUBISHI | MITSUBISHI | MITSUBISHI |
Performance Characteristics
1. Italian design and multi-stations
2. Both for single-layer tiles and double-layer tiles
3. Italian ATOS hydraulic system and Japanese MITSUBISHI PLC system.
4. Besides high hydraulic pressure, it works with vibration and vacuum system
5. Easy operation and maintenance
